GEBK Series Radial Spherical Plain Bearing Steel Brass 52100 Hard Chrome Plated 4 Piece ISO Standard

GEBK Series Radial Spherical Plain Bearing — 52100 Steel, Brass Liner, DIN ISO 12240-1

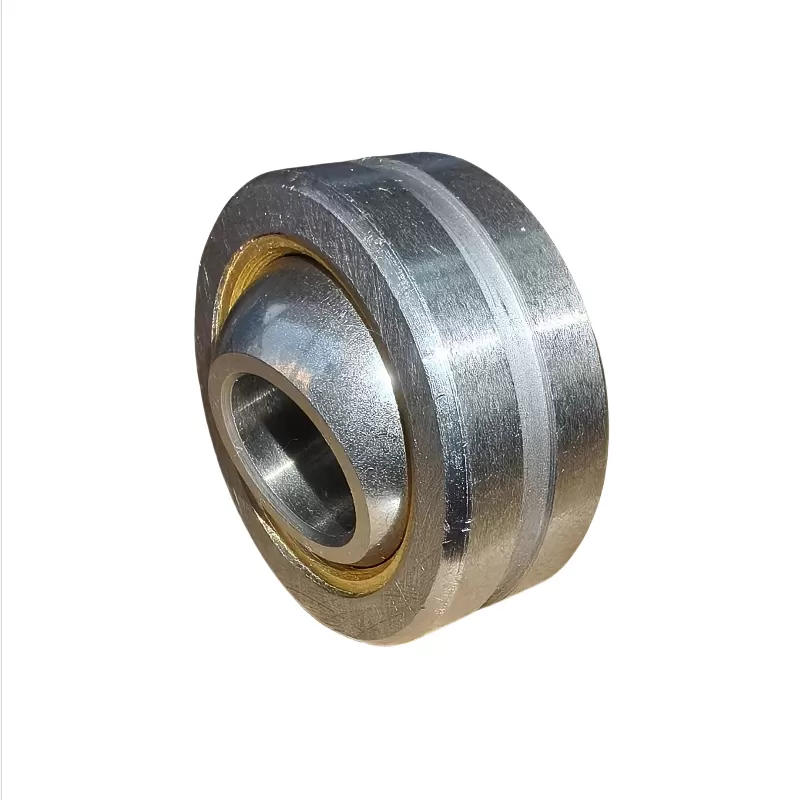

The GEBK series is a comprehensive range of radial spherical plain bearings conforming to DIN ISO 12240-1 dimension series K. Built with a robust 4-piece maintenance-required construction, each bearing combines a 52100 bearing steel inner ring with hard chromium plating, a brass insert liner, and a carbon steel outer ring for reliable performance in grease-lubricated applications.

Key Features

• 52100 Bearing Steel Inner Ring: Premium-grade 52100 (100Cr6) bearing steel, hardened, precision-ground, and treated with hard chromium plating on the spherical sliding surface for superior wear resistance
• Brass Insert Liner: High-quality brass liner provides an excellent sliding partner to the hard chrome plated inner ring, delivering smooth operation with proper grease lubrication
• Steel/Brass Sliding Contact: Optimized material pairing ensures reliable tribological performance and extended service life under maintained lubrication conditions
• 4-Piece Construction: Robust multi-piece design for secure assembly, consistent dimensional stability, and ease of installation
• DIN ISO 12240-1 Compliant: Manufactured to international dimension series K standards for guaranteed interchangeability with major bearing brands
• Carbon Steel Outer Ring: Formed carbon steel with protective oil coating, designed for press-fit housing installation
• Wide Temperature Range: Suitable for applications from -50°C to +150°C when paired with appropriate high-performance grease
• Maintenance Required: Designed for periodic grease relubrication to maximize bearing life in demanding applications

Technical Specifications

Applications

Ideal for agricultural machinery, construction equipment, hydraulic cylinders, lifting devices, conveyor systems, industrial manipulators, and any application requiring a DIN-standard radial spherical plain bearing with steel/brass contact and grease lubrication maintenance capability.

Complete GEBK series dimensional range available. Contact us for technical datasheets, 3D CAD models, load rating tables, and competitive OEM pricing.
